Description

SPECIFICATIONS

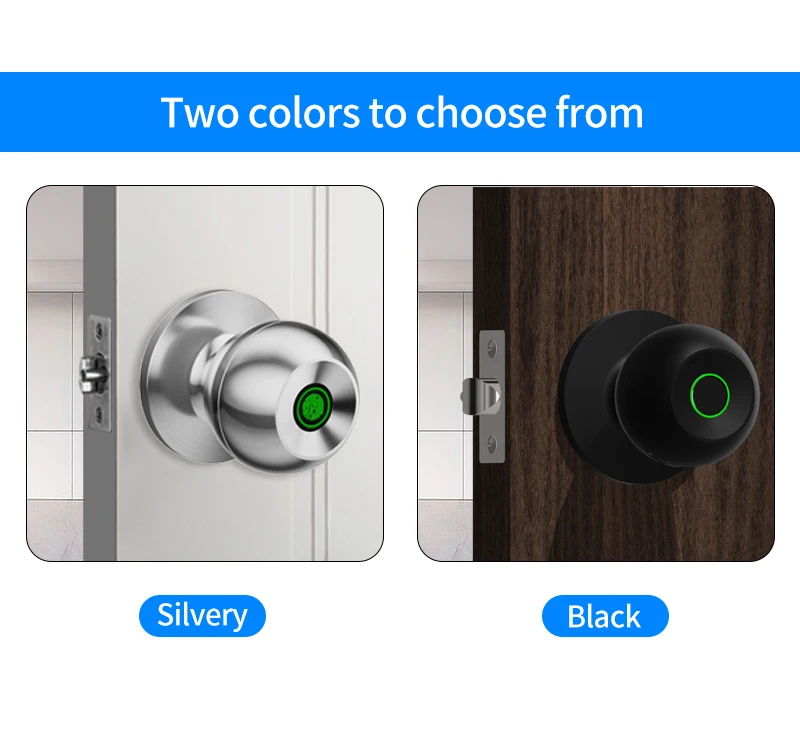

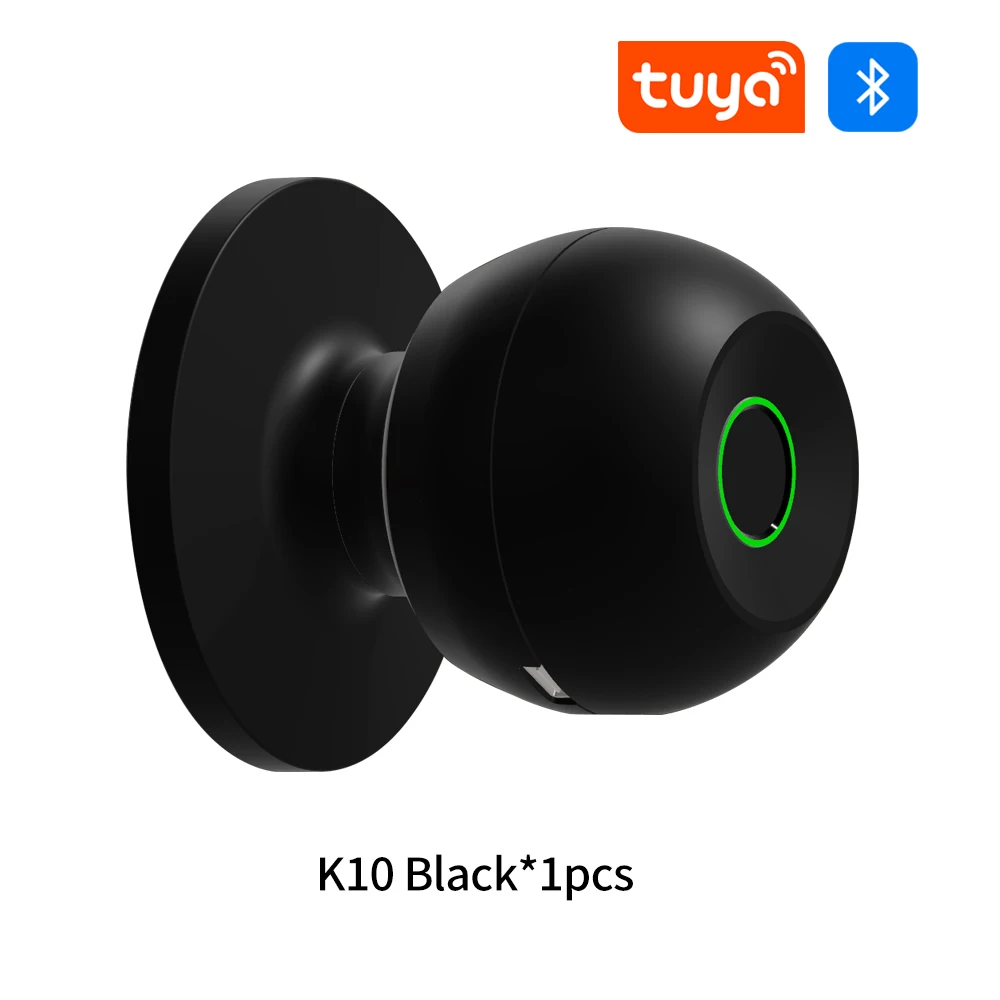

Color: Stainless steel or brushed steel color

Connectivity: bluetooth

Doorknob Funcition: Biometric,Key & Keypad

Fingerprint pixels: 140 * 96

Fingerprint resolution: 508dpi

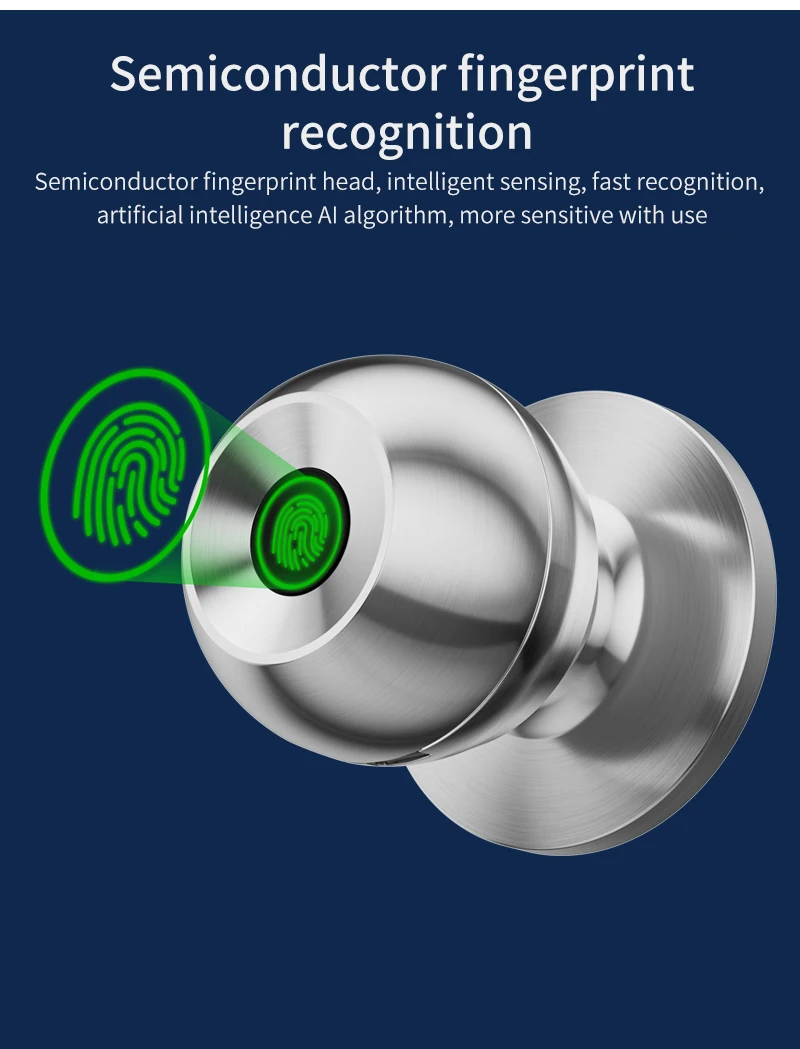

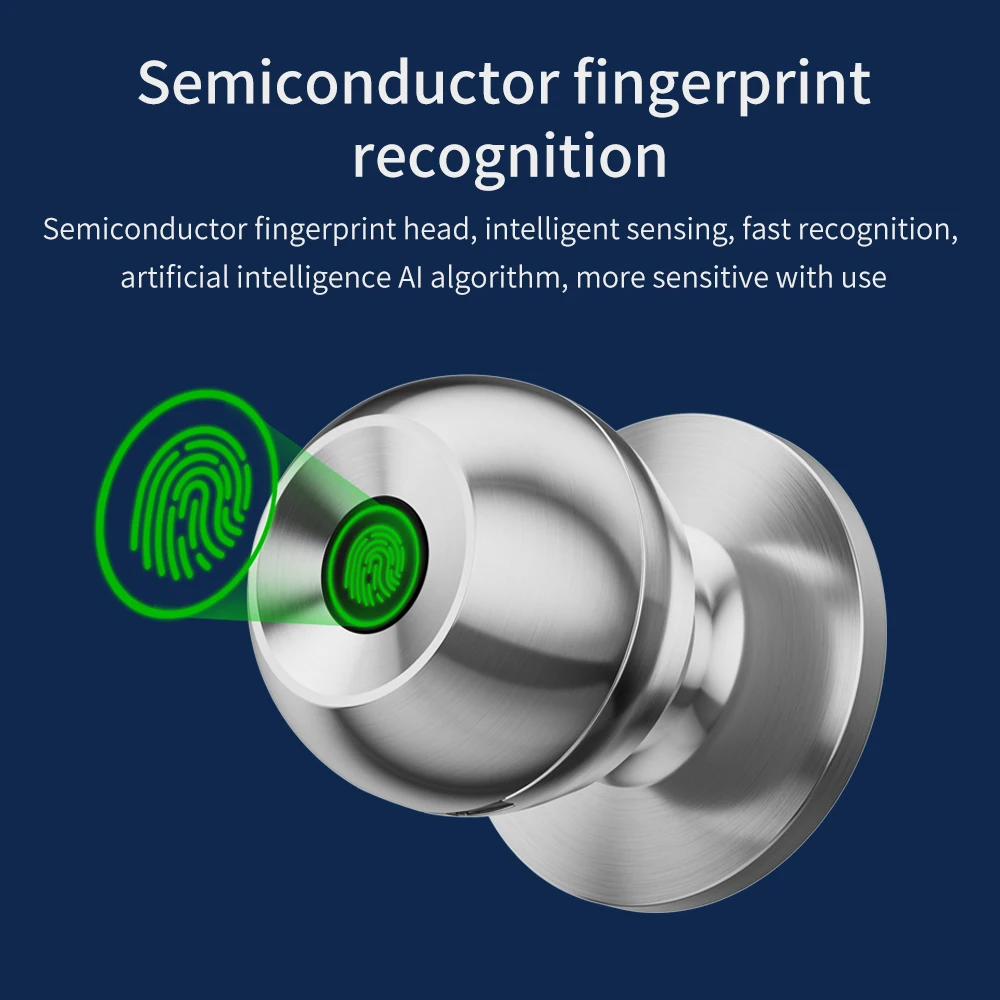

Fingerprint specifications: Semiconductor fingerprint+LED breathing light fingerprint: 20 pieces

Fit Door Thickness: 33mm-55mm

Free fall test: Drop height: 0.76m Drop frequency: Cement floor, each of the 6 surfaces has dropped once

Gross weight per unit (Kg): 0.73/unit

Handle Direction: Direction Reversible

High and low temperature testing: Grade II 55 degrees+/-2 4H -10 degrees+/-3 4H

Hign-concerned Chemical: None

Inner packaging box: colour printing

Inner packaging method: White box packaging

Inner packaging size: L230mm*W98mm*H84mm

Life test: 100000 times

Lock core: Pinball lock core

Low power alarm function: 3.3 to 0.2V (low voltage alarm)

Net weight per unit (Kg): 0.68/unit

Power Supply: DRY BATTERY

Power supply mode: 400mAh aluminum battery with 3.7V power supply Type-C temporary power supply and charging 5V2A

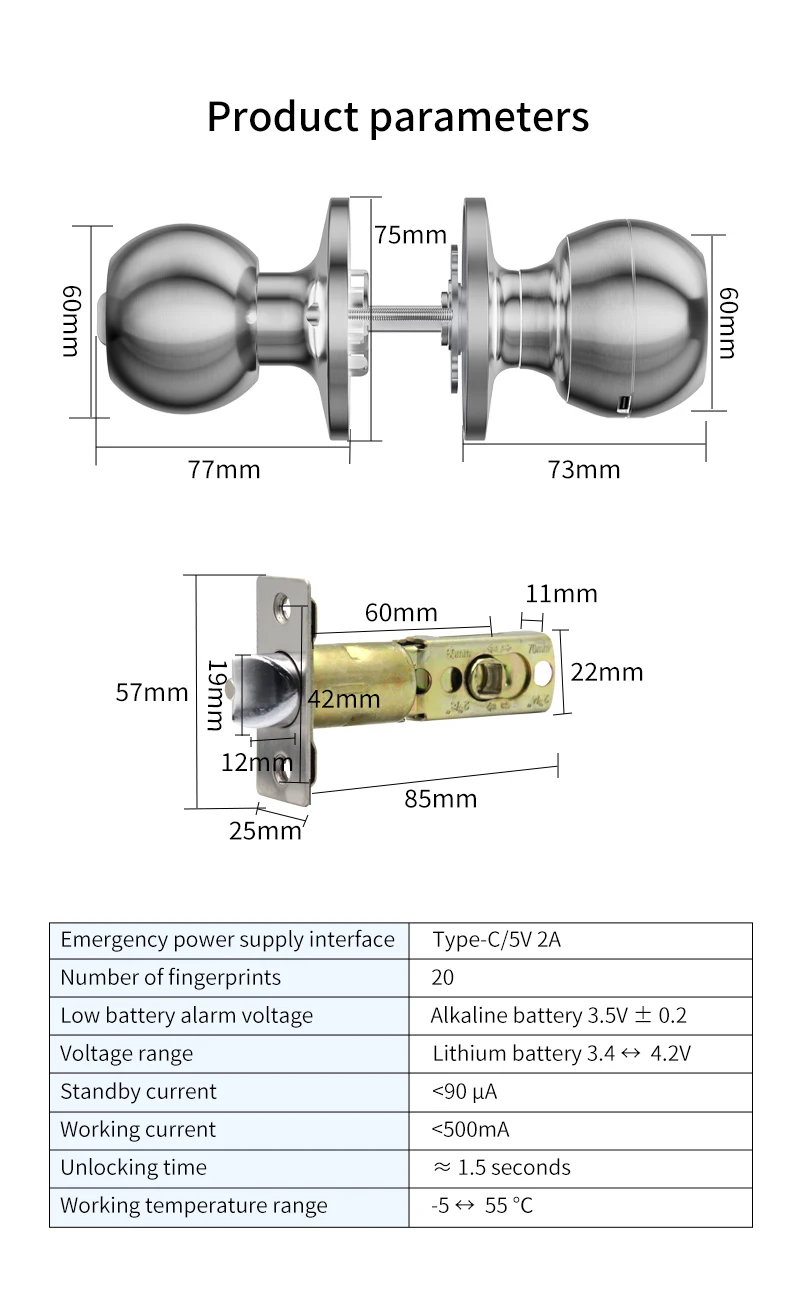

Product dimensions: 75mm*73mm

Security classification: FCC

Size of inner packaging box: L100mm*W86mm*H230mm

Smart home platform: tuya

Sound promp: Buzzer prompts navigation

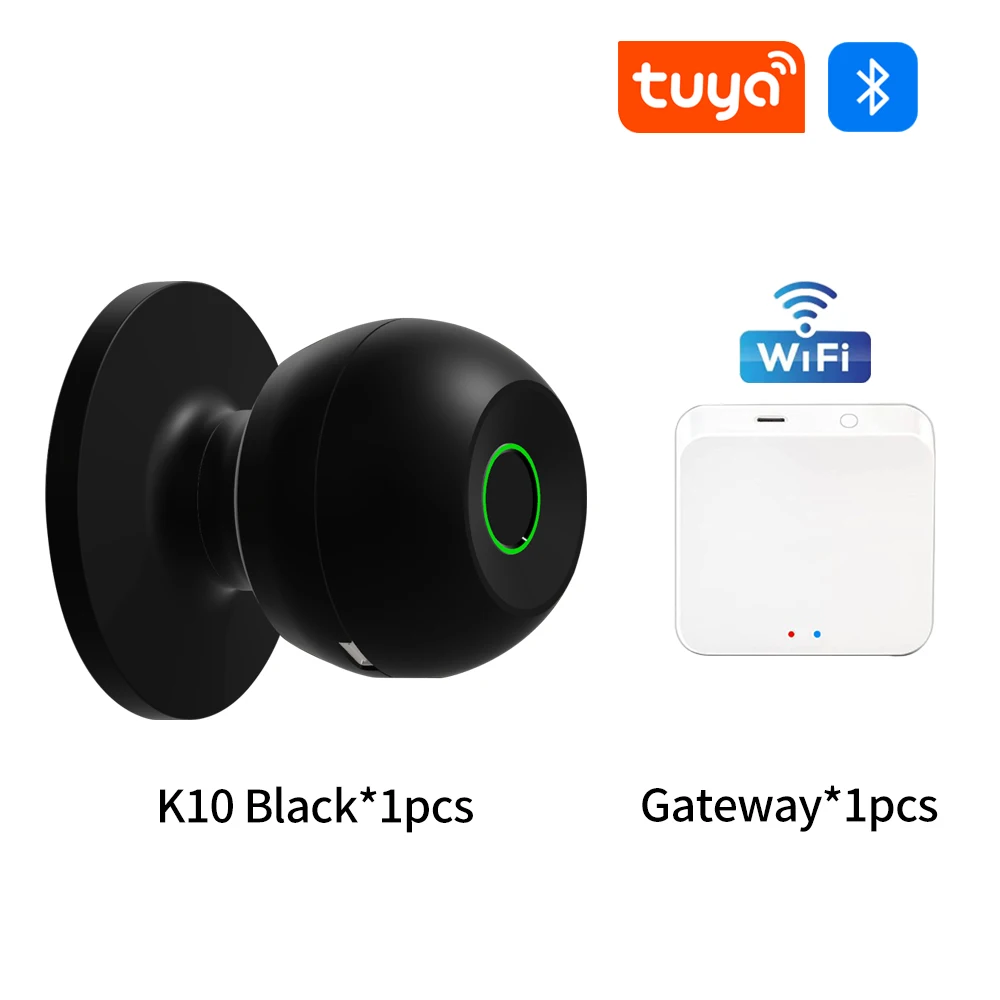

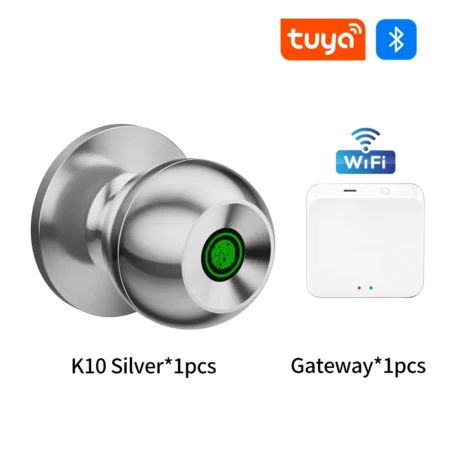

Special Features: Support Gateway

Standby power consumption: Standby static current ≤ 90uA

Suitable Door Type: Wooden Door

Universal lock body: American standard single tongue lock (60-70 adjustable)

Unlocking method: Key Tuya Bluetooth APP Fingerprint

Ways To Unlock: App,Mechanical Keys,FINGERPRINT

Working current: Average working current: ≤ 350m

Product Features

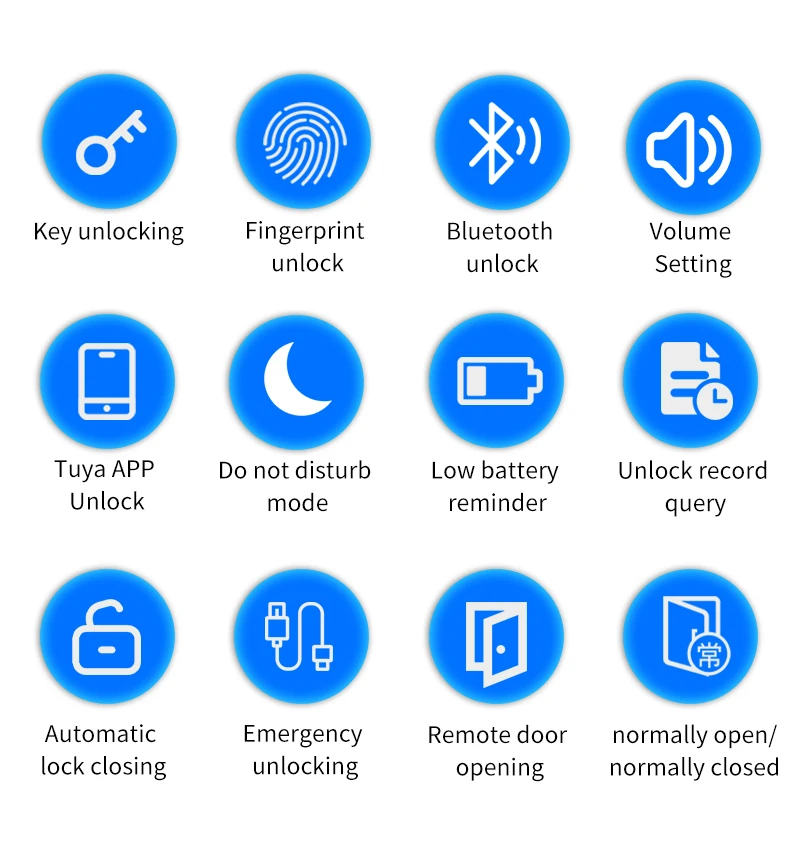

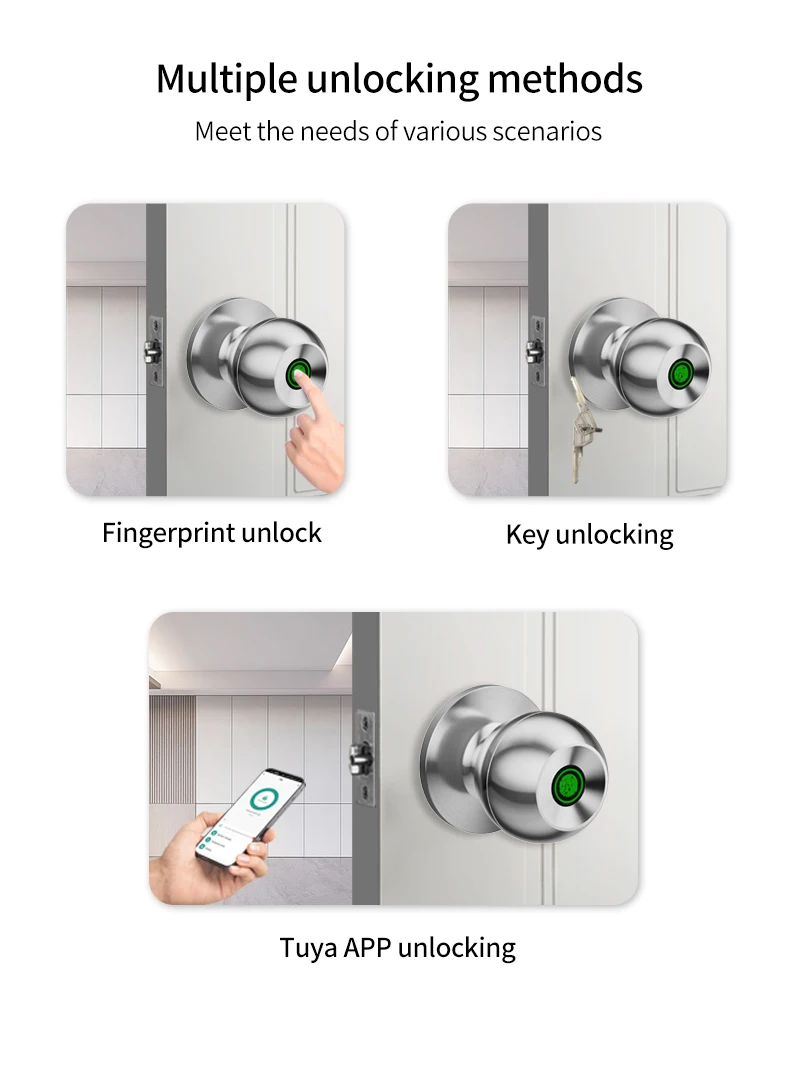

1. The unlocking function includes fingerprint unlocking, key unlocking, and Bluetooth APP unlocking.

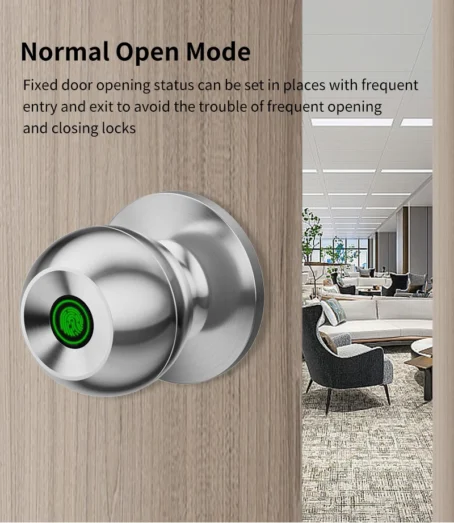

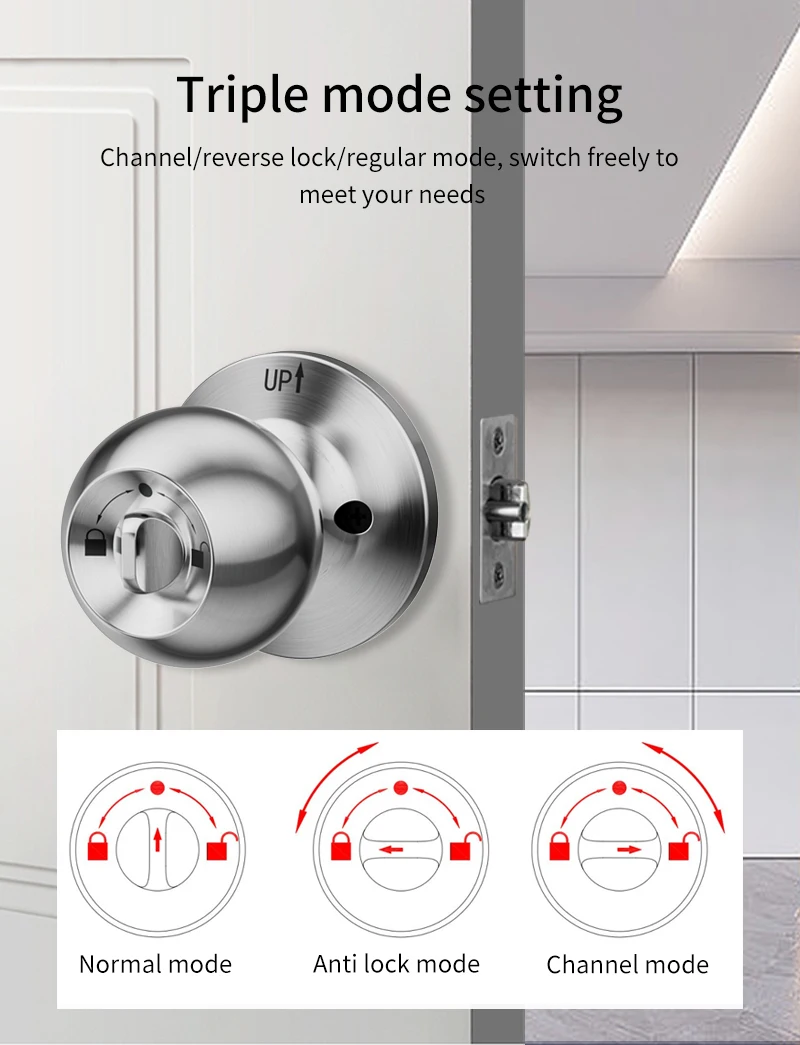

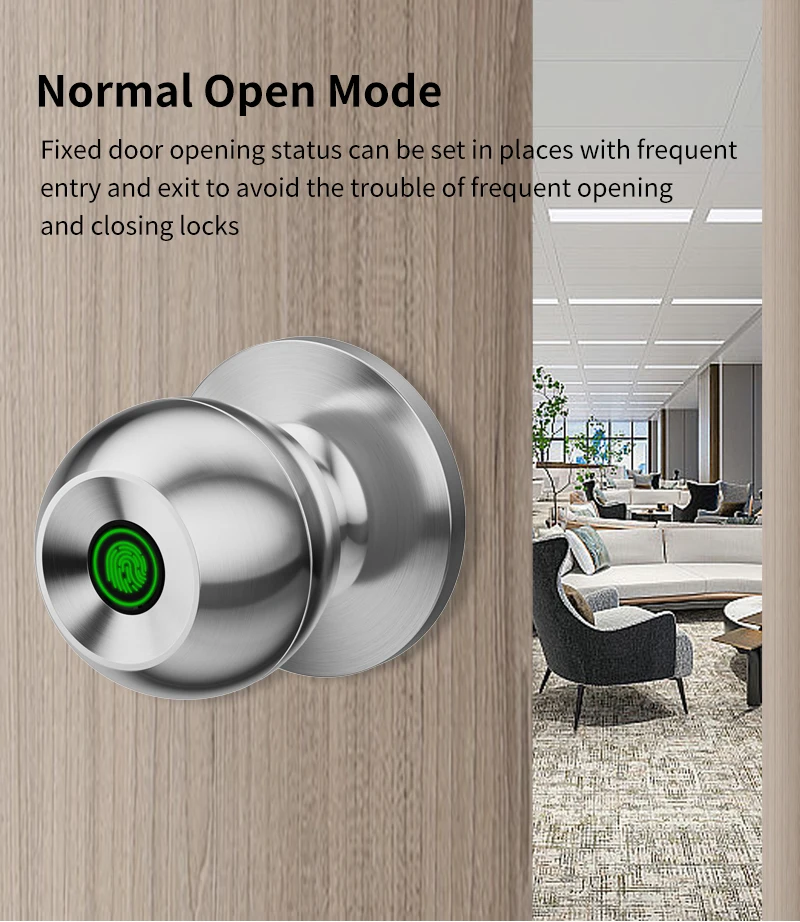

2.Triple mode: Passage Word/Lockout/Normal Open mode, switch freely.

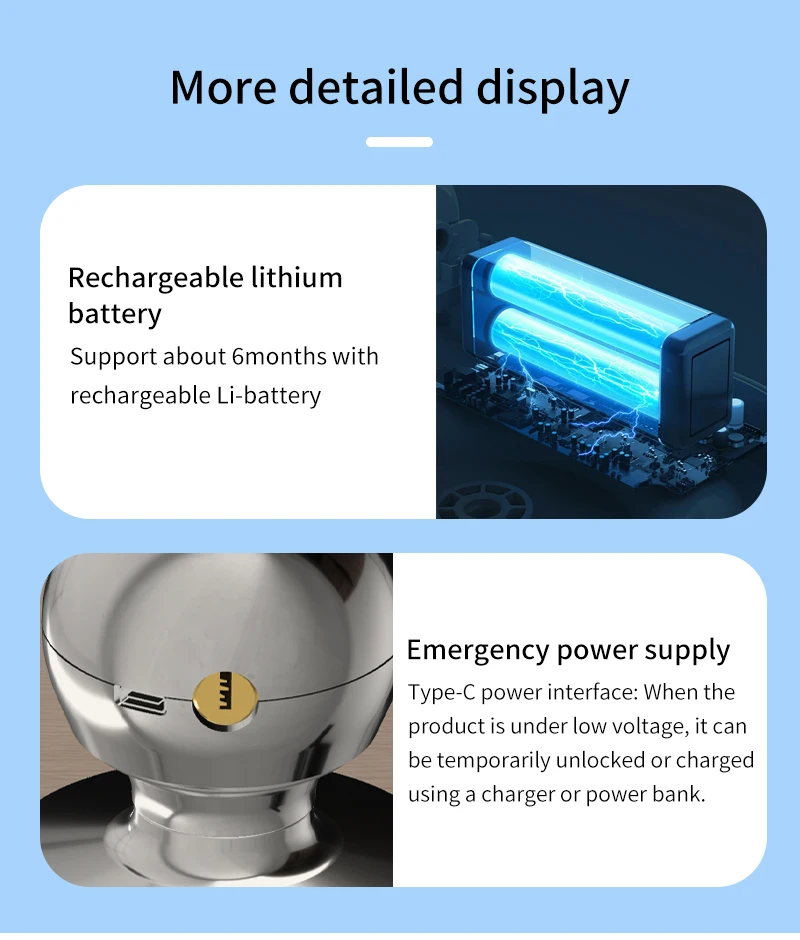

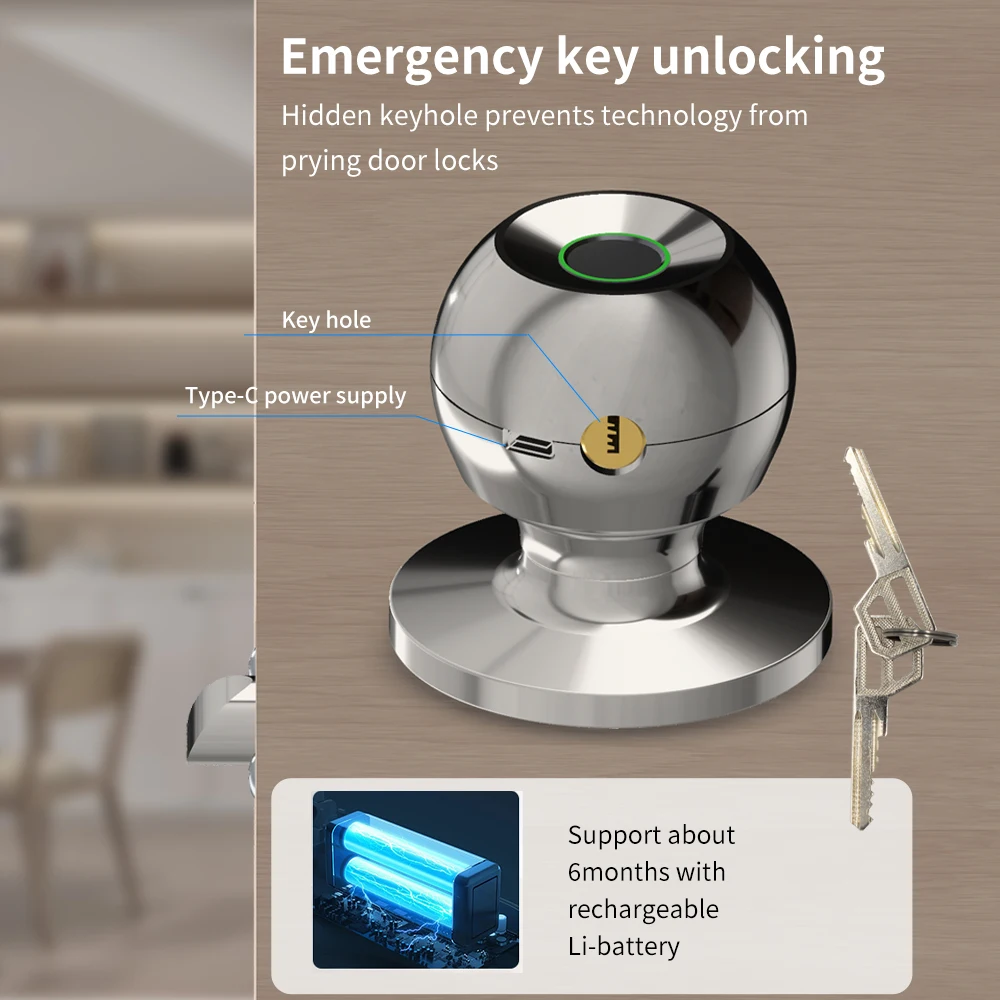

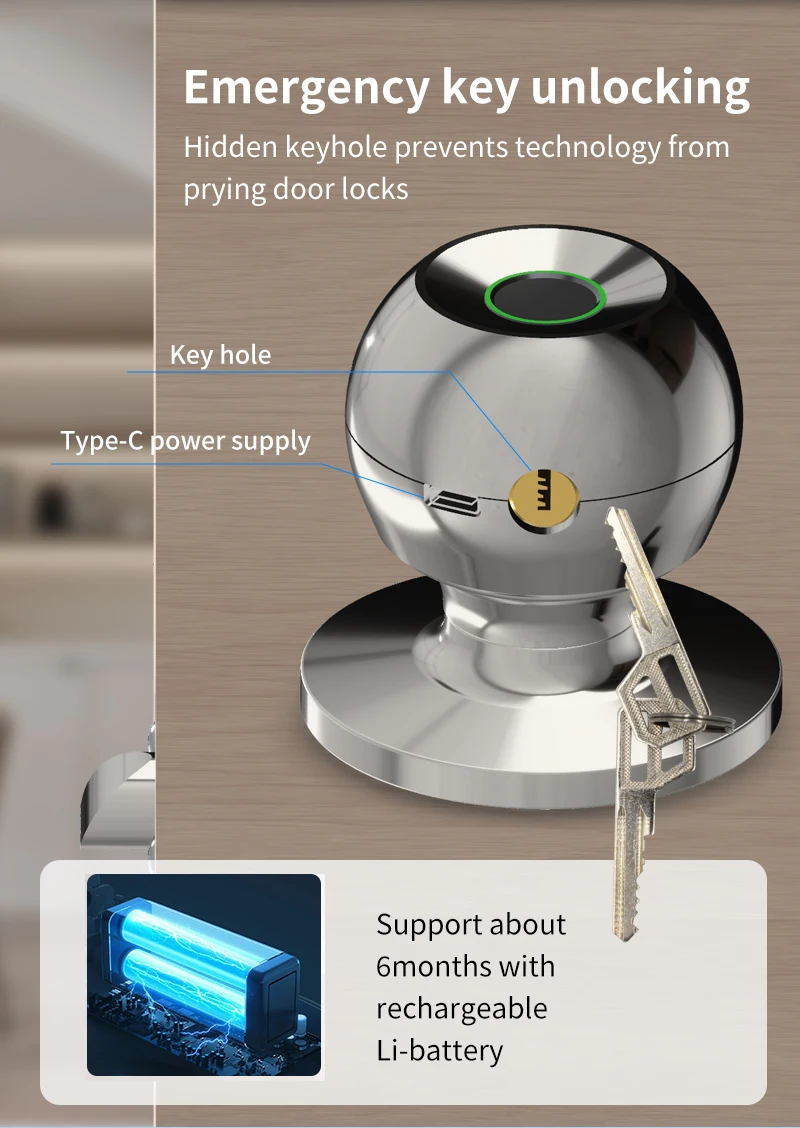

3.Low voltage alarm function, Type-C emergency power supply or charging interface.

4.The anti lock function ensures strict privacy protection.

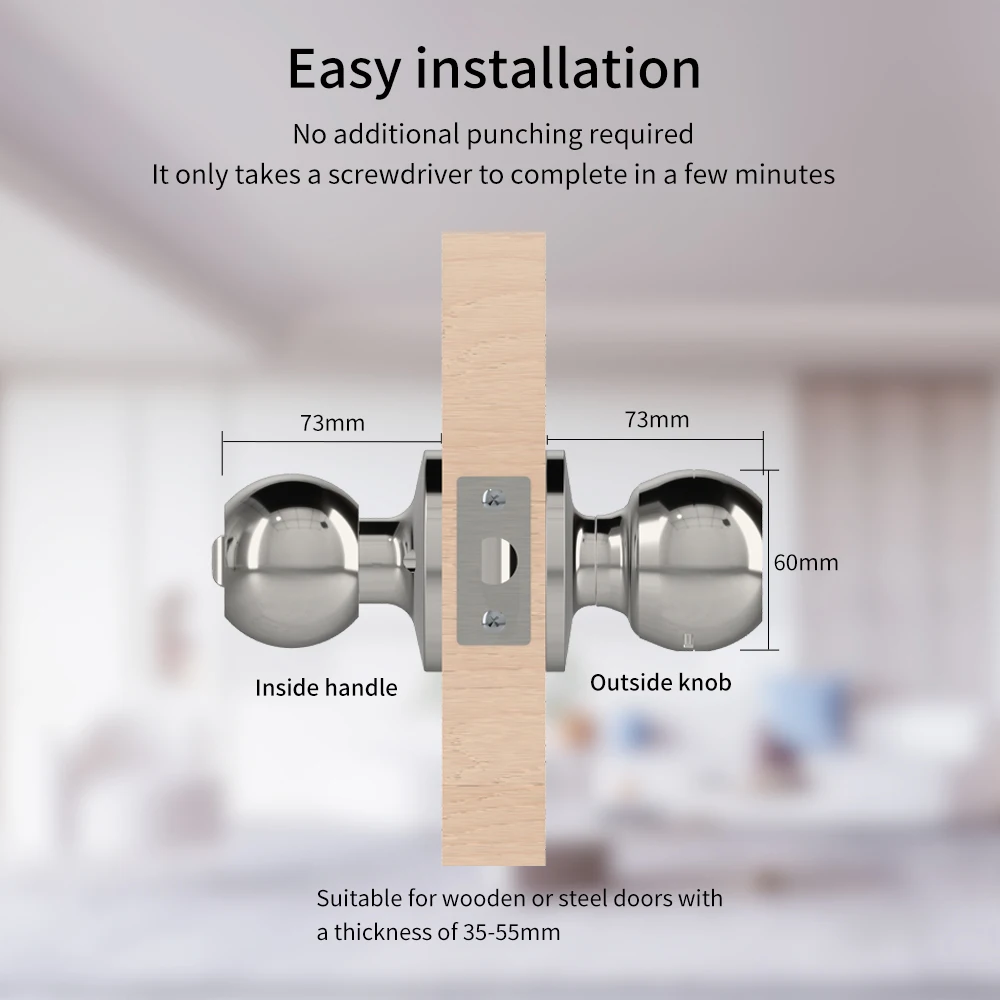

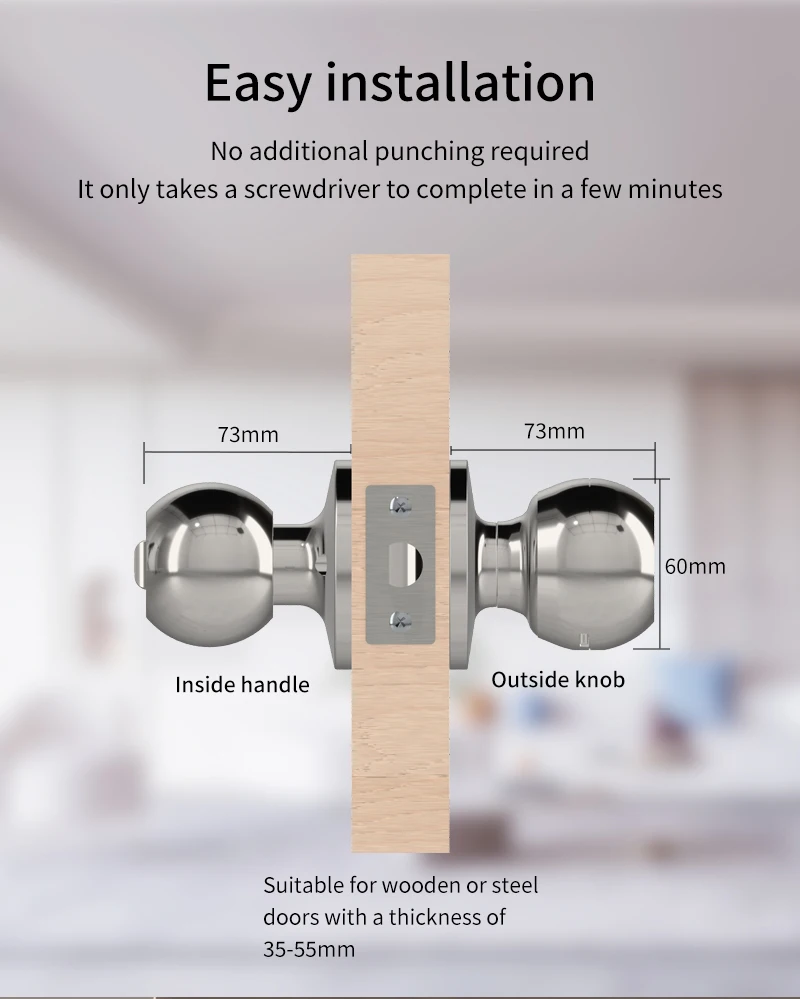

5.Suitable for wooden or steel doors with a thickness of 33-55mm.

6.Suitable for residential areas, apartments, offices, office buildings, etc.

Operating instructions

1. Turn on Bluetooth, mobile network or WiFi, and location on your phone.

2. Search for “Tuya Intelligence” on the App Store or App Store, download the app and install it.

3. Register and log in with your phone number.

4. Press the “Tuya Smart” interface to add a device, find the “Camera/Lock” and record the “Door Lock Bluetooth”. Click on it, then touch the fingerprint head to wake up the Bluetooth. After searching for the Bluetooth device on the APP, click (Add) ->click (+icon) to connect. Follow the APP prompts to complete the addition and use. (Note: After adding a Bluetooth device, the lock end automatically cancels the experience mode).

5. Add administrator fingerprint (to be operated next to the lock);Member management ->Click on my (fingerprint icon) ->Click on (add) ->Start adding ->Turn on the blue light on the fingerprint head and press the fingerprint input button on the fingerprint head (follow the prompts on your phone). After adding successfully, the fingerprint will unlock.

6. Add regular user fingerprint (to be operated by locking the edge next to it);Member Management ->Click (+icon) ->Click (Add Member) ->Enter Name ->Enter Account (no need to unlock with phone, this can be left blank) ->Select Regular Member for Family Role ->Click (Save) ->Click on XXXX’s (fingerprint icon) ->Click (Add) ->Start Adding ->Turn on the blue light on the fingerprint head and press the fingerprint input button (follow the prompts on the phone). After successful addition, the fingerprint or password will unlock.

7. Delete fingerprint (to be done next to the lock);Member Management ->Click on XXXX’s (fingerprint icon) ->Click on (fingerprint to be deleted) ->(Follow the prompts on your phone). After successful deletion, the fingerprint will no longer be able to unlock. Attention: The lock end should retain an administrator fingerprint.

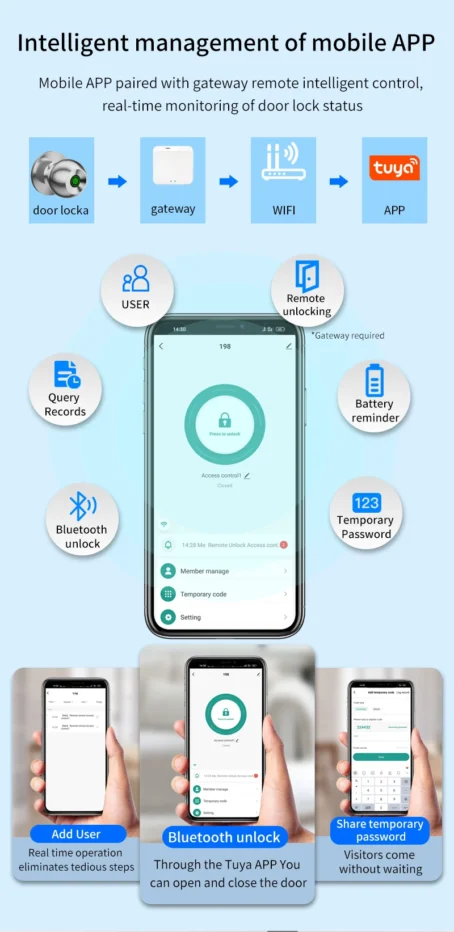

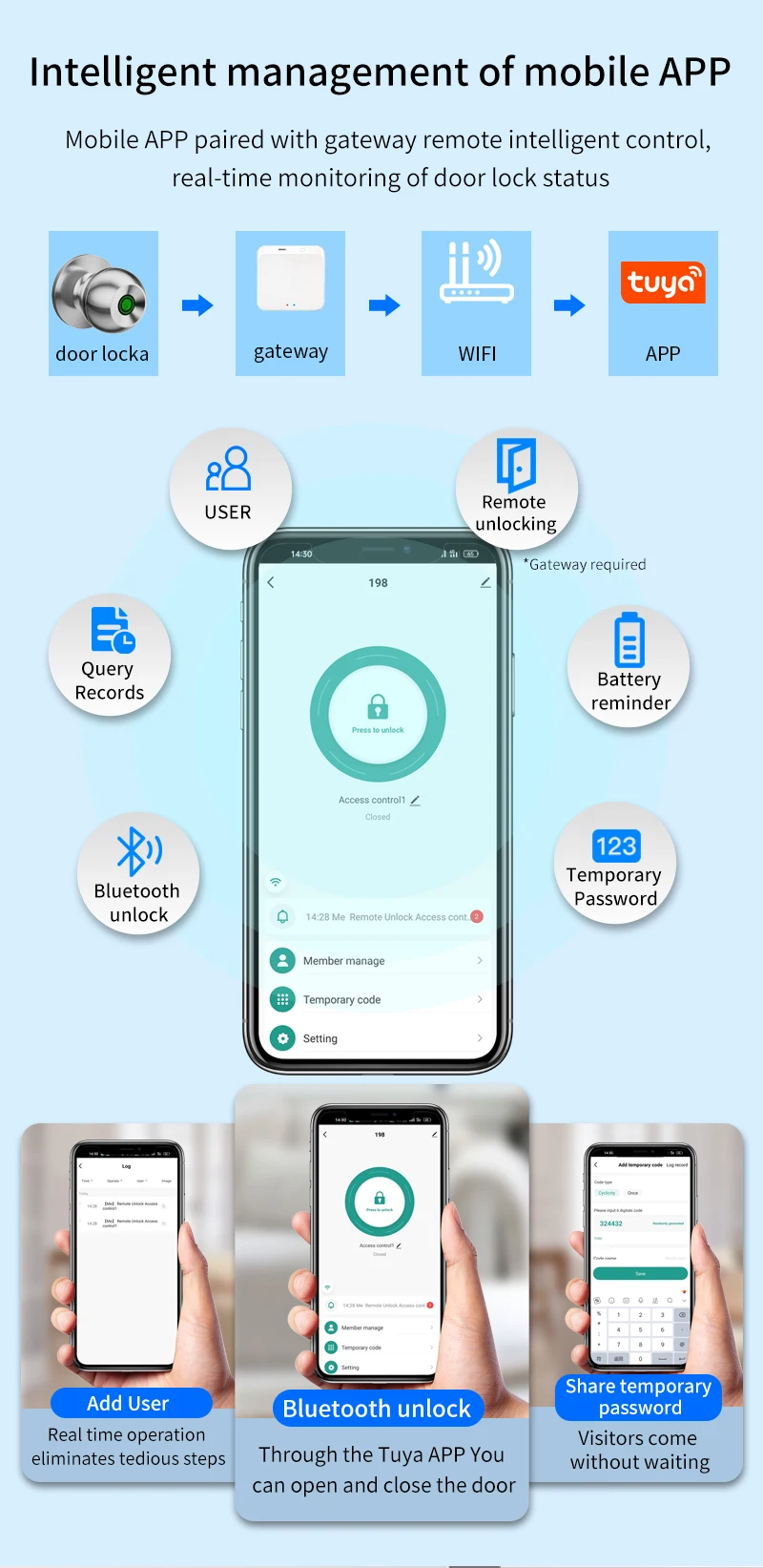

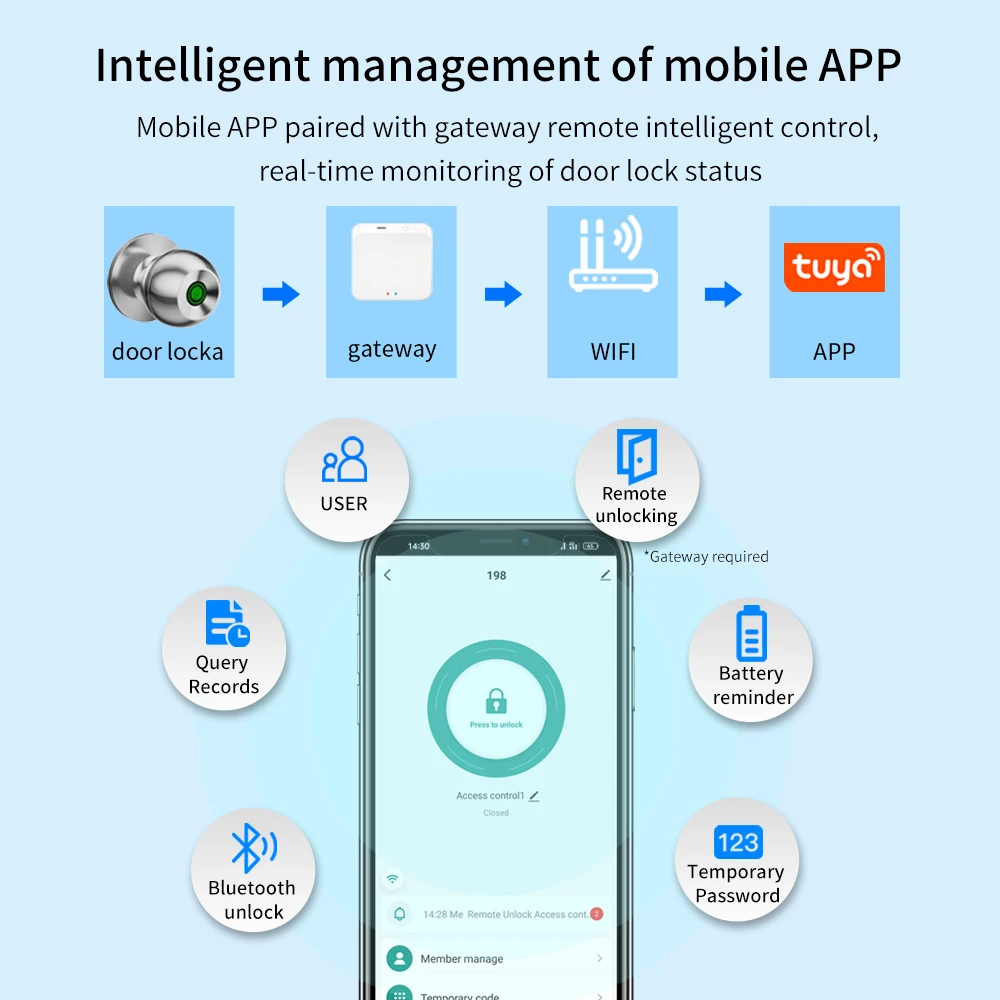

8. Remote unlocking

Settings → Remote Unlock Click (Open icon). Attention: Only by connecting to the gateway can remote unlocking be performed.

9. Lock volume:

Door lock navigation mute: Turn off buzzer navigation.

The volume of the door lock navigation is normal: turn on the buzzer navigation.

10. Do not disturb mode

Settings ->Do Not Disturb Mode ->Click (On) ->Time Settings (set according to your own schedule). During the set time, ordinary users cannot unlock with their fingerprints, only management fingerprints can unlock. Ordinary members/administrators can unlock with Bluetooth on their mobile phones.
